IPRE SR210 Surface Roughness Tester

Instrument Features

(1)Supports 17 parameters: Ra，Rq，Rz，Rv，Rp，Rm，Rt，RS，RSm，R3z，R5z, R3y，Rz（JIS），Rsk，Rku，Rmax，Rpc
(2)Measuring Range: Ra、Rq：0.005-16μm; Rz、Ry、Rt、Rp、Rv、Rmax、R3z、Rz（JIS）：0.02-160μm; RS, RSm：1mm, Rmr：0-100%（%Rt）, Rsk, Rku,Rpc ：0-100%
(3)Display used OLED, has the characteristics of self-luminous, full visual angle, wide temperature and so on.
(4)Use special sensor RS210, interchangeable in IPRE products, can assure high linear measurement due to built-in calibration curve.
(5)Support Rmax, Rsk, Rku, Rpc.
(6)Remote upgrade the embedded software.
(7)Sensor developed and produced independent.
(8)Curved surface sensor used circular guide head suite for a variety of conditions.
(9)Use ARM processor, has powerful computing power and control ability.
(10)Parameters are the most completed in similar products.
(11)Support wireless printing and data transmission and Bluetooth printing and transmission.

Wireless and simultaneous operation or printing

Optional Sensor of Surface Roughness Tester

Specifications:
We have independent researched and developed the whole series production of sensors. The surface sensor is designed with annular guide head. The sensors can measure the complex condition of work-piece surface.
We can customize special sensor according to user needs.
Later we can develop sensors that STYLUS radius reached 2μm.
Optimized the design of the internal structure to improve the stability of the test and the reliability of the sensor.
Use imported LEMO interface that support hot-swappable, so the sensor can be matching interface with the host.

RS100 standard sensor：
Can be used to measure plane, cylindrical surface roughness. Also can used to measure the hole surface that hole diameter is larger than 5mm the maximum depth is less than 22mm.

RS110 Curved sensor:
Can be used to measure the surface roughness of work piece that curvature radius of concave convex surface larger than 6mm. Also can used to measure the planar, cylindrical used with platform.

RS130 Deep groove sensor:
Can be used to measure the deep groove that the width is larger than 2mm, the depth is less than 3mm, or the surface roughness of steps that height less than 3mm. Also can used to measure the planar, cylindrical used with platform.

RS131 Deep groove sensor:
Can be used to measure the deep groove that the width is larger than 3mm, the depth is less than 10mm, or the surface roughness of steps that height less than 10mm. Also can used to measure the planar, cylindrical used with platform.

Technical Parameter

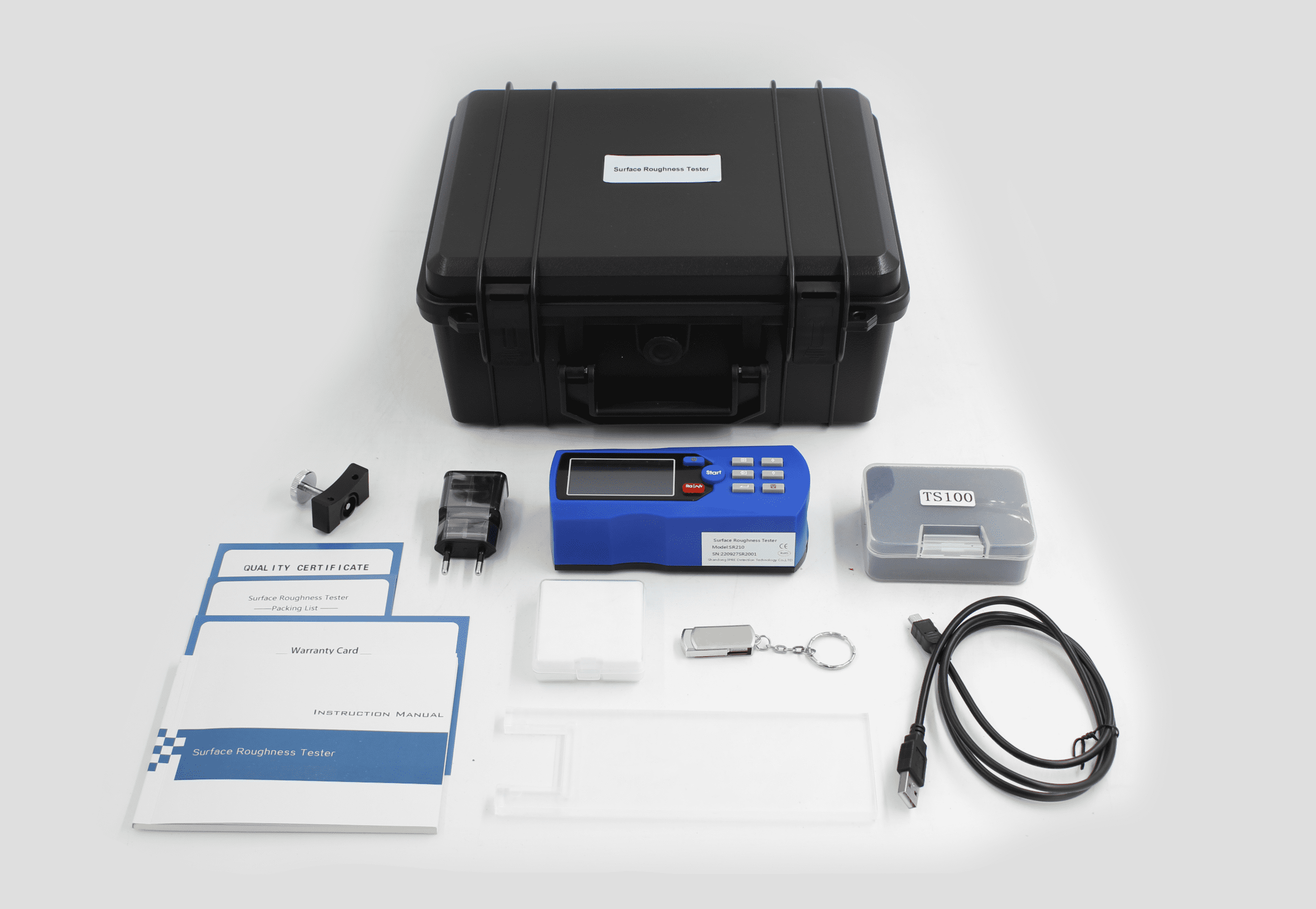

Standard Configuration
