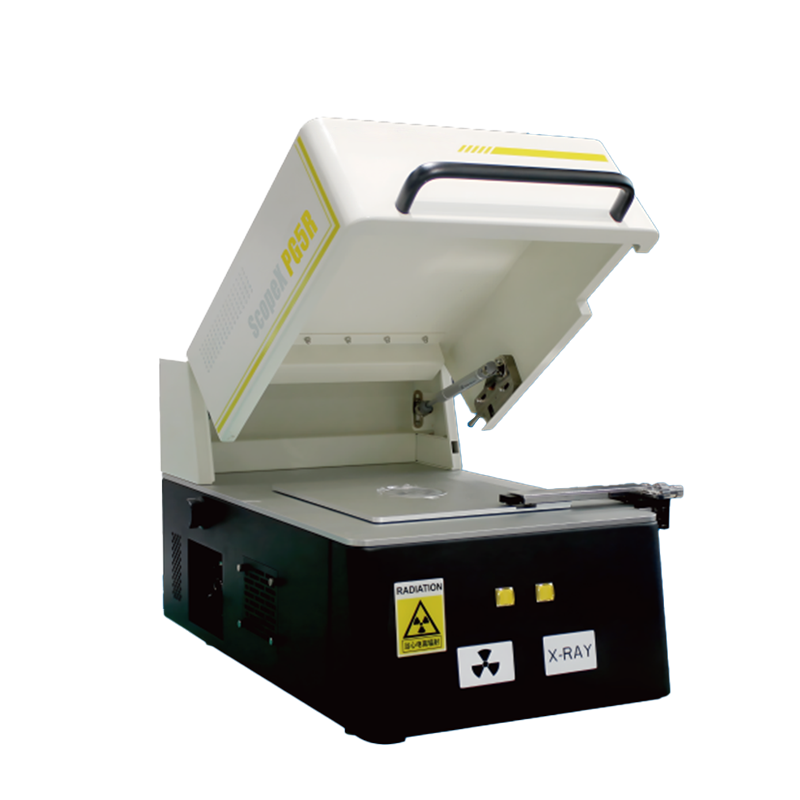

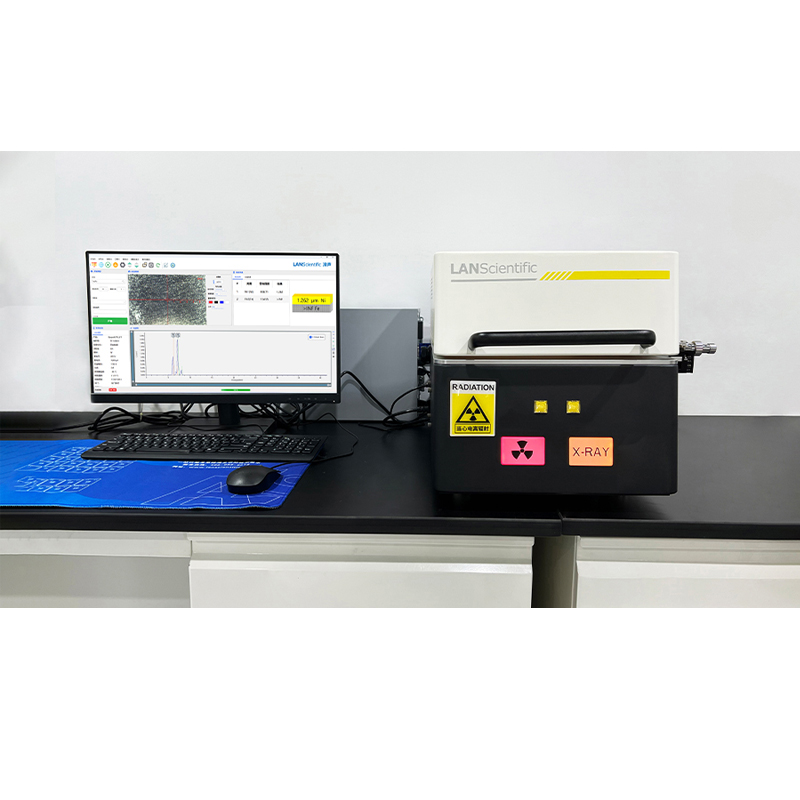

ScopeX PG5 Gold Analyzer for High-end Recycling

ScopeX PG5 is a precision testing equipment designed for the gold recycling industry. The instrument adopts an integrated design, built-in industrial control computer, large sample chamber. It can determine the purity and composition of gold group and other precious metals quickly and accurately, effectively identify adulterated elements such as tungsten, iridium, rhenium, ensure accuracy of recycling process, prevent recyclers from economic losses due to misjudgment and improve efficiency of recycling.

ScopeX PG5 is equipped with user-friendly operation interface and simplifies test process, so even beginners can get started quickly. The high-precision test results provide a reliable quality assurance for the gold recyclers, and also provide a transparent transaction basis for both buyers and sellers.

The sample is bombarded with X-rays, and the sample is excited to produce X-ray fluorescence. X-rays usually knock out the inner electrons of the K and L layers of the element atoms, and the holes generated are filled by high-energy outer electrons. The high-energy electrons added to the low-energy orbit radiate the excess energy in the form of X-ray fluorescence. These radiated spectral lines contain the characteristics of various elements. Like fingerprints, and independent of the chemical valence state of the atoms. The intensity of the radiation is proportional to the concentration of the element in the sample.

Advantage

Non-destructive test(NDT)

No need to process samples in the early stage,  realizing nondestructive test of precious metals simply, conveniently and fast.

Accurate and fast

Fast identification of precious metal composition can be completed within several seconds to minutes.

A/S service

7*24hours hotline, quick and professional response to ensure customers’ worry-free experience.

High accuracy

XRF technology provides reliable purity and composition data with an accuracy up to 0.01% .

Perfect safety protection

Various safety protection mechanism including high voltage safety lock (automatic interlock), software opening cover, anti-leakage protection switch and all-metal closed shell  fundamentally ensure the personal safety of operators and avoid radiation caused by accidental operation.

One-click intelligent operation

The entire analysis process can be done in several seconds. The operation is simple and can be easily mastered by non-technical personnel.

Sample flexibility

Various forms of samples, as well as small parts on samples such as joints, buttons, inlays and gem support can be easily tested.

Equipped with Bluetooth printer

Bluetooth printer is equipped for wireless printing. Users only need to click ‘Print’ button to obtain reports and data quickly.
