IPRR UT210 Ultrasonic Thickness Gauge

Additional information

IPRR UT210 Ultrasonic Thickness Gauge Description

Ultrasonic Thickness Gauge PRUT210

Features

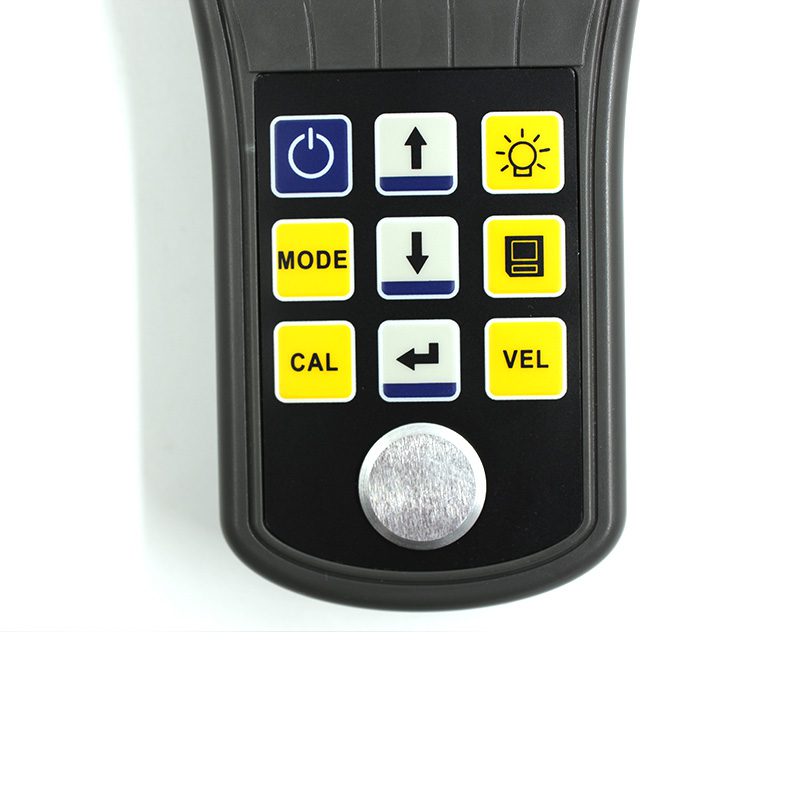

Menu operation interface, easy to use.
High resolution(128*64 ) LCD display(1.8 inch×1.2inch) with white backlight.
Memory of max 500 groups of data
High precision, the acquisition of thickness change of 1% mm.
Coupling state indicating in the display.
Durable cast aluminum probe case.

Main Technical Specifications

Resolution	0.01mm
Accuracy	1 mm～10 mm :±0.05mm ； 10mm～200mm :(±0.5%H+0.1)mm
Measuring Range	0.75-225mm (Steel)
Transducer frequency	7.5MHz, 5MHz, 2MHz
Velocity	1000-9999m/s
Display	128*64 LCD，LED backlight
Power supply	3×1.5V AAA batteries
Dimensions in inch	6.1×2.7×1.1
Weight	230g

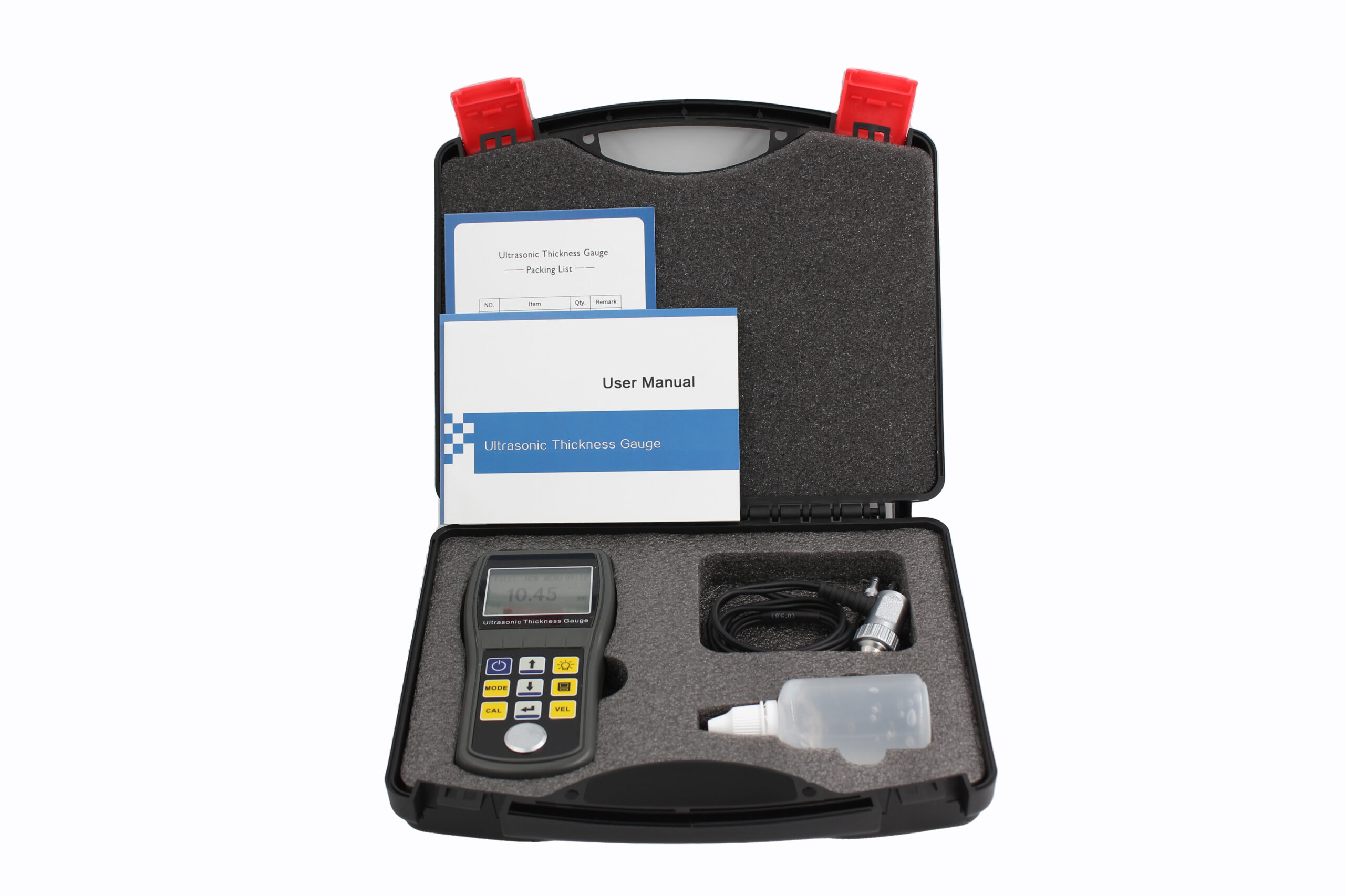

Standard Delivery

Main Unit	1 pc
Transducer (5P￠8)	1 pc
User Manual	1 pc
Couplant	1 bottle
Battery (AAA)	3 pcs
