IPRE UT600 Ultrasonic Thickness Gauge

Additional information

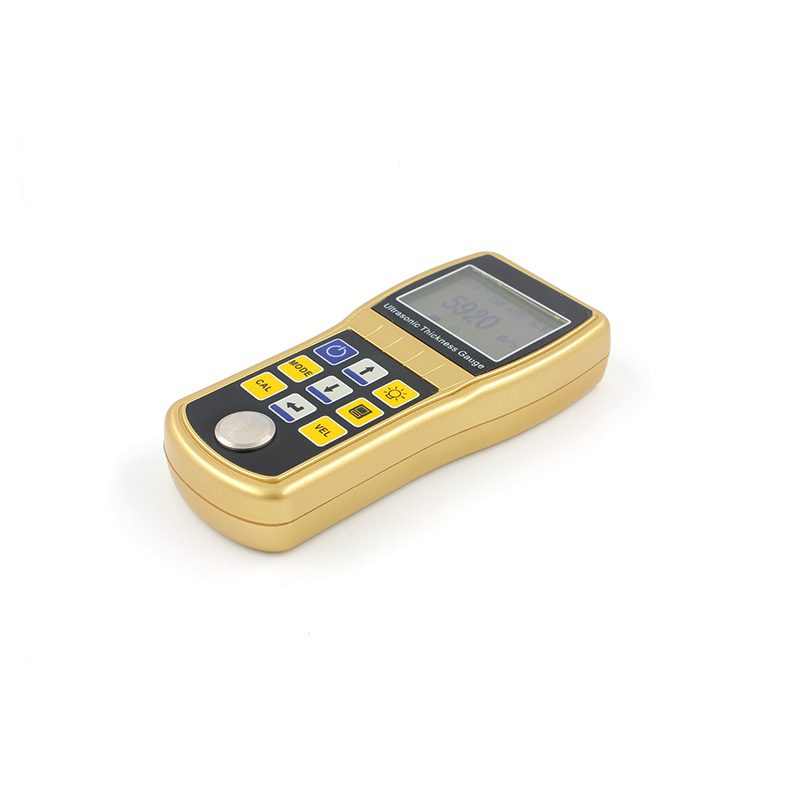

IPRE UT600 Ultrasonic Thickness Gauge Description

 PRUT600 High performance ultrasonic thickness gauge

scaledIMG 1540



Product characteristics



  1. By using ‘clutter flight technology’, on the one hand, the measurement of ultra-thin parts can be realized.
  2. The minimum thickness (steel) can reach 0.15mm; on the other hand, high precision thickness measurement can be realized.
  3. The highest resolution can reach 0.001mm.
  4. 4. Two measurement modes: IEmode and EEmode are optional.
  5. It can be measured through the surface coating.
  6. 6.The probe is placed on the test block of the thickness gauge. Press the key to automatically set zero.
  7. Have the function of voice broadcast.
  8. 8. With LED backlight display, it is convenient to use in dim light environment.



Range of application



This instrument can accurately measure various plates and various machining parts. Can be widely used in

Petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace, special inspection and other fields.



Technical parameters

measuring range 0.15mm~10(steel ) (EE mode);  3mm~20mm (IE mode)
resoluation 0.001mm
measurement error 0.005mm
frequency of measurement 15MHz, 20MHz
sound speed range 1000-9999m/s
display 128*64 LCD display,LED White backlight
working voltage 3*1.5V
boundary dimension 155mm*68mm*27 mm
weight 230g

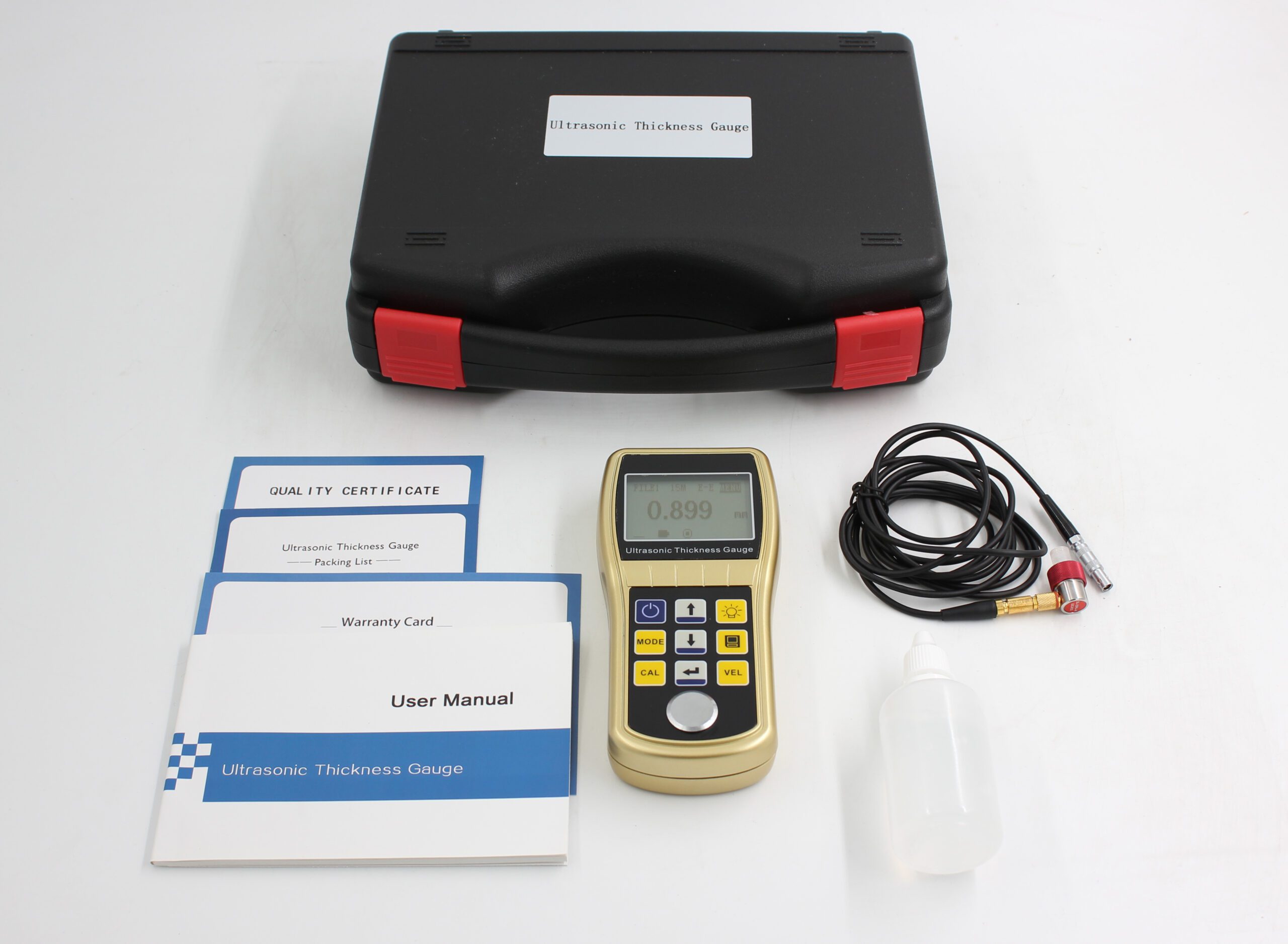

Standard configuration

name quantity name quantity

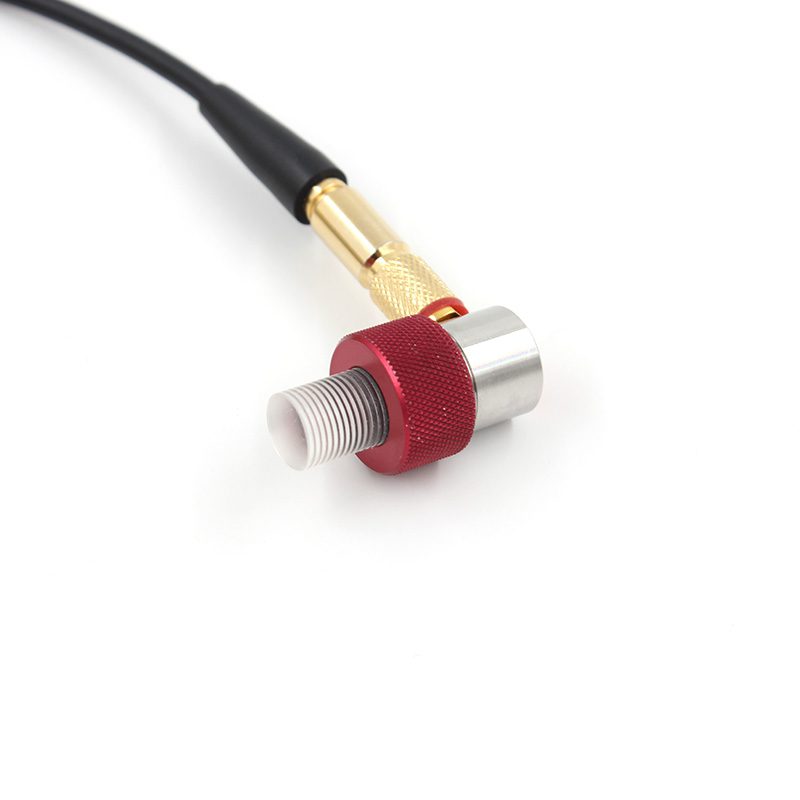

Host machine 1 Single crystal 15M probe 1
Couplant 1 Alkaline battery 1.5V 3
instructions 1 Packing list 1
certificate 1 Warranty card 1
