Product Features
current probe (N)
Main Technical Specification
| Probe Type | F | N | |
| Measuring Principles | Magnetic Induction | Eddy Current | |
| Measuring Range | 0～1500µm | 0～1500µm,
Chromium plating on copper(0～40µm) |
|
| Resolution | 0.1μm（0~50μm ），1μm（>50μm ） | ||
| Measurement error | 3%H+1μm(H is the measuring range) | ||
| Measuring Mode | Single or continuous | ||
| Calibration Mode | One point Calibration; Two-points Calibration | ||
| Accuracy | One-point Calibration | ±(3%H+1) | ±(3%H+1) |
| Two-points Calibration | ±[(1～3)%H+1] | ±[(1～3)%H+1] | |
| Measuring Condition | Min. radius of curvature(mm) | 1.5 (Convex) | 3 (Convex) |
| Min. diameter of area(mm) | Φ7 | Φ5 | |
| Critical thickness of substrate(mm) | 0.5 | 0.3 | |
| Power Supply | Built-in rechargeable battery(2*3.7V) | ||
| Overall dimensions | 198mm*82mm*30mm | ||
| Weight | 320g | ||

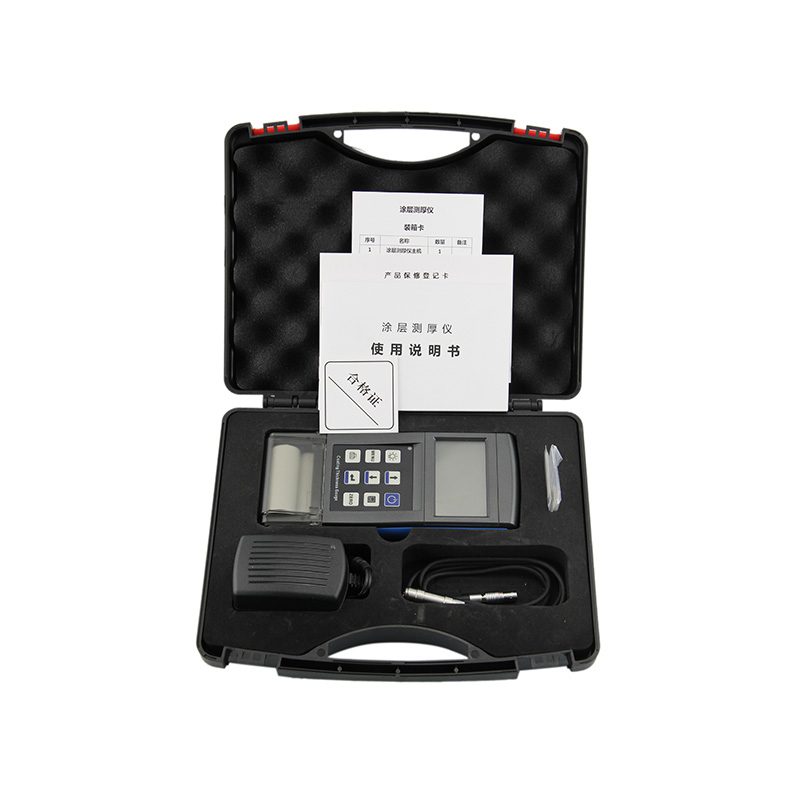

Standard Delivery
| Main Unit | 1 pc |
| Calibration Block | 1 pc |
| Probe（F or N） | 1 pc |
| Standard Foil | 5 pcs |
| AC/DC Adaptor | 1 pc |
| Built-in Thermal Printer | 1 pc |
| User Manual | 1 pc |
